Assalamualaikum wr.wb

Alhamdulillah saya diberi kesempatan untuk membagikan ilmu lagi kali ini kita mencoba sesuatu yang baru yaitu Superlab Cisco #21 hari ini semangatkan? harus semangat ok!!,ini masih belum selesai masih banyak lagi yang mau saya bagikan, cukup basa basinya sekarang langsung saja berikut topologinya dan file pkt bisa di downloaddisini

Materi Lab

1. DHCP < Server dan Client >

2. Routing Protokol EIGRP

3. VLAN

4. Inter- VLAN

5. Redistribution

6. Routing RIP

7. Standard Access List

8. Extended Access List

9. IP Phones

10. Routing OSPF

pertama kita konfigurasi topologi bagian ini

pertama kita konfigurasi vlan10 danvlan30 di sw diatas dulu

Switch3(config)#vlan 10

Switch3(config-vlan)#name vlan10

Switch3(config-vlan)#ex

Switch3(config)#int fa0/2

Switch3(config-if)#switchport mode access

Switch3(config-if)#switchport access vlan 10

Switch3(config)#int fa0/1

Switch3(config-if)#switchport mode trunk

dan di sw sampingnya,kita konfigurasi vlan dan portnya

Switch(config)#vlan 30

Switch(config-vlan)#name vlan30

Switch(config-vlan)#ex

Switch(config)#int fa0/2

Switch(config-if)#switchport mode access

Switch(config-if)#switchport access vlan 30

Switch(config-if)#ex

Switch(config)#int fa0/1

Switch(config-if)#switchport mode trunk

selanjutnya konfigurasi ip address untuk vlan di router6 dan 8 router 7 sekalian deh

Router6(config)#int fa1/0

Router6(config-if)#no sh

Router6(config-if)#int fa1/0.10

Router6(config-subif)#ip addr 10.10.10.1 255.255.255.0

Router6(config-subif)#ex

Router6(dhcp-config)#int fa0/0

Router6(config-if)#no sh

Router6(config-if)#ip addr 67.67.67.6 255.255.255.0

Router6(config)#int fa6/0

Router6(config-if)#no sh

Router6(config-if)#ip addr 46.46.46.6 255.255.255.0

Router6(config-if)#

sekarang konfigurasi dhcp pool untukclient

Router6(config)#ip dhcp pool vlan10

Router6(dhcp-config)#net 10.10.10.0 255.255.255.0

Router6(dhcp-config)#def 10.10.10.1

selanjutnya kita konfigurasi di router 8,konfigurasinya sama seperti yang diatas

Router8(config)#int fa0/0

Router8(config-if)#no sh

Router8(config-if)#int fa0/0.30

Router8(config-subif)#ip addr 30.30.30.1 255.255.255.0

Router8(config-subif)#encapsulation dot1Q 30

Router8(config-subif)#ip addr 30.30.30.1 255.255.255.0

Router8(dhcp-config)#int fa1/0

Router8(config-if)#no sh

Router8(config-if)#ip addr 78.78.78.8 255.255.255.0

Router8(config-if)#ex

sekarang konfigurasi dhcpnya

Router8(config)#ip dhcp pool vlan30

Router8(dhcp-config)#net 30.30.30.0 255.255.255.0

Router8(dhcp-config)#def 30.30.30.1

sekarang kita konfigurasi ip addr di router 7

Router7(config)#int fa0/0

Router7(config-if)#no sh

Router7(config-if)#ip addr 67.67.67.7 255.255.255.0

Router7(config-if)#int fa1/0

Router7(config-if)#no sh

Router7(config-if)#ip addr 78.78.78.7 255.255.255.0

Router7(config-if)#

kemudian kita konfigurasi routing protokol eigrpdi router diatas

Router6(config)#router eigrp 10

Router6(config-router)#net 67.67.67.0

Router6(config-router)#net 10.10.10.0

Router6(config-router)#net 46.46.46.0

Router7(config)#router eigrp 10

Router7(config-router)#net 67.67.67.0

Router7(config-router)#net 78.78.78.0

Router8(config)#router eigrp 10

Router8(config-router)#net 78.78.78.0

Router8(config-router)#net 30.30.30.0

sekarang kita pindah ke gambar topologi dibawah ini

kita mulai konfigurasi ip address dahulu mulai router 2

Router2(config)#int fa0/0

Router2(config-if)#no sh

Router2(config-if)#ip addr 23.23.23.2 255.255.255.0

Router2(config-if)#int fa6/0

Router2(config-if)#no sh

Router2(config-if)#ip addr 12.12.12.2 255.255.255.0

Router2(config-if)#int fa1/0

Router2(config-if)#no sh

Router2(config-if)#ip addr 21.21.21.2 255.255.255.0

Router2(config-if)#ex

kemudian pindah ke router 1

Router-IDN1(config)#int fa0/0

Router-IDN1(config-if)#no sh

Router-IDN1(config-if)#ip addr 12.12.12.1 255.255.255.0

Router-IDN1(config-if)#ex

Router-IDN1(config)#int fa0/1

Router-IDN1(config-if)#no sh

Router-IDN1(config-if)#ip addr 20.20.20.1 255.255.255.0

Router-IDN1(config-if)#

konfigurasi di router 3

Router3(config)#int fa1/0

Router3(config-if)#no sh

Router3(config-if)#ip addr 23.23.23.3 255.255.255.0

Router3(config-if)#int fa0/0

Router3(config-if)#no sh

Router3(config-if)#ip addr 17.17.17.1 255.255.255.0

Router3(config-if)#int fa6/0

Router3(config-if)#no sh

Router3(config-if)#ip addr 34.34.34.3 255.255.255.0

sekarang kita konfigurasi telephone di router1,pertama buat dhcp pool terlebih dahulu

Router-IDN1(config)#ip dhcp pool voice1

Router-IDN1(dhcp-config)#net 20.20.20.0 255.255.255.0

Router-IDN1(dhcp-config)#def 20.20.20.1

Router-IDN1(dhcp-config)#option 150 ip 20.20.20.1

Router-IDN1(dhcp-config)#ex

kemudian konfigurasi layanan telephonenya

Router-IDN1(config)#telephony-service

Router-IDN1(config-telephony)#max-dn 5

Router-IDN1(config-telephony)#max-ephones 5

Router-IDN1(config-telephony)#ip source-address 20.20.20.1 port 2000

Router-IDN1(config-telephony)#auto assign 4 to 6

Router-IDN1(config-telephony)#auto assign 1 to 5

selanjutnya kita atur nomor telephonenya

Router-IDN1(config)#ephone-dn 1

Router-IDN1(config-ephone-dn)#number 2020

Router-IDN1(config-ephone-dn)#ex

Router-IDN1(config)#ephone-dn 2

Router-IDN1(config-ephone-dn)#number 2021

Router-IDN1(config-ephone-dn)#

selanjutnya kita konfigurasi sw0,arahkan portnya ke router supaya bisa mendapatkan ip otomatis

IDN-SW0(config)#int fa0/2

IDN-SW0(config-if)#switchport mode access

IDN-SW0(config-if)#switchport voice vlan 1

IDN-SW0(config-if)#int fa0/3

IDN-SW0(config-if)#switchport mode access

IDN-SW0(config-if)#switchport voice vlan 1

sekarang kita ujucoba konfigari kita

sekarang kita konfigurasi routing protokolnya sekarang kita menggunakan rip di semua router di atas

Router-IDN1(config)#ROuter rip

Router-IDN1(config-router)#v 2

Router-IDN1(config-router)#net 12.12.12.0

Router-IDN1(config-router)#net 20.20.20.0

Router2(config-router)#v 2

Router2(config-router)#net 23.23.23.0

Router2(config-router)#net 21.21.21.0

Router2(config-router)#net 12.12.12.0

Router3(config)#router rip

Router3(config-router)#v 2

Router3(config-router)#net 17.17.17.0

Router3(config-router)#net 23.23.23.0

Router3(config-router)#net 34.34.34.0

Router3(config-router)#ex

selanjutnya kita konfigurasi access list pada router 2 ,kita aplikasikan supaya ip 17.17.17.2 tidak bisa mengeping ke server

Router2(config)#access-list 1 deny host 17.17.17.2

Router2(config)#access-list 1 permit any

Router2(config)#int fa1/0

Router2(config-if)#ip access-group 1 out

sekarang kita coba ngeping

selanjutnya kita konfigurasi extended access list,tetap di router 2 kok

Router2(config)#no access-list 1

Router2(config)#access-list 177 deny tcp host 17.17.17.3 host 21.21.21.1 eq www

Router2(config)#access-list 177 permit ip any any

Router2(config)#int fa0/0

Router2(config-if)#ip access-group 177 in

sekarang kita coba di konputer yang menggunakan ip address 17.17.17.3

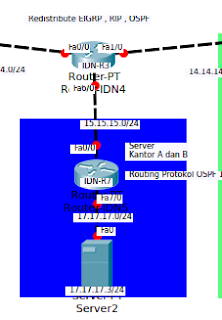

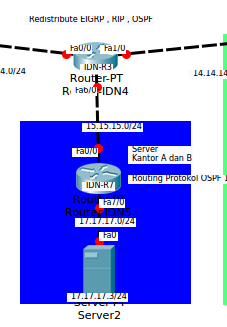

selanjutnya kita konfigurasi ruter yang berada di gambar topologi dibawah ini

pertama kita konfigurasi ip address dahulu

Router4(config)#int fa0/0

Router4(config-if)#no sh

Router4(config-if)#ip addr 34.34.34.4 255.255.255.0

Router4(config-if)#int fa1/0

Router4(config-if)#no sh

Router4(config-if)#ip addr 46.46.46.4 255.255.255.0

Router4(config-if)#int fa6/0

Router4(config-if)#no sh

Router4(config-if)#ip addr 45.45.45.4 255.255.255.0

sekarang dirouter 5

Router5(config)#int fa0/0

Router5(config-if)#no sh

Router5(config-if)#ip addr 45.45.45.4 255.255.255.0

Router5(config-if)#int fa7/0

Router5(config-if)#no sh

Router5(config-if)#ip addr 5.5.5.5 255.255.255.0

sekarang konfigurasi routing protokol eigrp,ospf dan ripdirouter 4 tapi sebelum itu kita konfigurasi di router 5 dahulu yaitu routing ospf

Router5(config)#router ospf 10

Router5(config-router)#net 45.45.45.0 0.0.0.255 ar 0

Router5(config-router)#net 5.5.5.0 0.0.0.255 ar 0

semudian baru di router 4 beserta redistributenya

Router4(config)#router eigrp 10

Router4(config-router)#net 46.46.46.0

Router4(config-router)#redistribute ospf 10 metric 1 1 1 1 1

Router4(config-router)#redistribute rip metric 1 1 1 1 1

Router4(config-router)#ex

Router4(config)#router rip

Router4(config-router)#v 2

Router4(config-router)#net 34.34.34.0

Router4(config-router)#redistribute ospf 10 metric 1

Router4(config-router)#redistribute eigrp 10 metric 1

Router4(config-router)#ex

Router4(config)#router ospf 10

Router4(config-router)#net 45.45.45.0 0.0.0.255 ar 0

Router4(config-router)#redistribute eigrp 10 subnets tag 1

Router4(config-router)#redistribute rip subnets tag 1
