Assalamualaikum wr.wb

Alhamdulillah saya diberi kesempatan untuk membagikan ilmu lagi kali ini kita mencoba sesuatu yang baru yaitu Superlab Cisco #34 hari ini semangatkan? harus semangat ok!!,ini masih belum selesai masih banyak lagi yang mau saya bagikan, cukup basa basinya sekarang langsung saja berikut topologinya dan file pkt bisa di download disini

materi lab ini

1. MLS DHCP

2. RIPv2

3. EIGRP

4. OSPF

5. Redistribution

6. Wireless

7. Etherchannel (PAGP)

8. HSRP

9. Standard ACL

10. Extended ACL

pertama konfigurasi di bagian topologi dibawah ini

pertama kita konfigurasi vlan di sw1

Switch1(config)#vlan 10

Switch1(config-vlan)#na

Switch1(config-vlan)#name vlan10

Switch1(config-vlan)#ex

Switch1(config)#int ra fa0/4-6

Switch1(config-if-range)#switchport mode access

Switch1(config-if-range)#switchport access vlan 10

Switch1(config-if-range)#ex

kemudian berikan ip addr di int vlan 10

Switch1(config)#int vlan 10

Switch1(config-if)#ip addr 10.10.10.1 255.255.255.0

Switch1(config-if)#ex

sekalian konfigurasi ether channel

Switch1(config)#int ra fa0/1-3

Switch1(config-if-range)#channel-group 1 mode desirable

Switch1(config-if-range)#int port-channel 1

Switch1(config-if)#switchport trunk encapsulation dot1q

Switch1(config-if)#switchport mode trunk

Switch1(config-if)#ex

kemudian konfigurasi yang sama di sw2

Switch2(config)#int ra fa0/1-3

Switch2(config-if-range)#channel-group 1 mode desirable

Switch2(config-if)#switchport trunk encapsulation dot1q

Switch2(config-if)#switchport mode trunk

Switch2(config-if)#ex

kemudian konfigurasi vlannya

Switch2(config)#vlan 10

Switch2(config-vlan)#name vlan10

Switch2(config-vlan)#ex

Switch2(config)#int vlan 10

Switch2(config-if)#ip addr 10.10.10.2 255.255.255.0

Switch2(config-if)#ex

kemudian konfigurasi ip dhcp pool

Switch2(config)#ip dhcp pool dhcp1

Switch2(dhcp-config)#net 10.10.10.0 255.255.255.0

Switch2(dhcp-config)#def 10.10.10.1

Switch2(dhcp-config)#dn 30.30.30.2

Switch2(dhcp-config)#ex

kemudian nonaktifkan mode sw di sw2 dan berikan ip address

Switch2(config)#int fa0/5

Switch2(config-if)#no sw

Switch2(config-if)#ip addr 20.20.20.1 255.255.255.0

Switch2(config-if)#int fa0/4

Switch2(config-if)#no sw

Switch2(config-if)#ip addr 112.112.112.12 255.255.255.0

kemudian konfigurasi routing ospf,di sw2

Switch2(config)#ip routing

Switch2(config)#router ospf 10

Switch2(config-router)#net 10.10.10.0 0.0.0.255 ar 0

Switch2(config-router)#net 20.20.20.0 0.0.0.255 ar 0

Switch2(config-router)#net 112.112.112.0 0.0.0.255 ar 0

Switch2(config-router)#ex

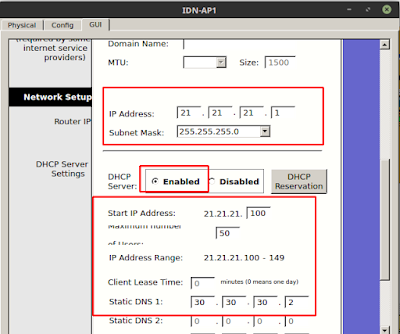

kemudian konfigurasi wirelesnya

kemudian konfigurasi routing protokol di bagian topologi dibawah ini

pertama konfigurasi ip addressnya,terlebih dahulu

Router1(config)#int fa1/0

Router1(config-if)#no sh

Router1(config-if)#ip addr 112.112.112.1 255.255.255.0

Router1(config-if)#int fa1/1

Router1(config-if)#no sh

Router1(config-if)#ip addr 30.30.30.1 255.255.255.0

Router1(config-if)#int fa0/0

Router1(config-if)#no sh

Router1(config-if)#ip addr 12.12.12.1 255.255.255.0

Router1(config-if)#int fa0/1

Router1(config-if)#no sh

Router1(config-if)#ip addr 23.23.23.1 255.255.255.0

kemudian konfigurasi di router 2

Router2(config)#int fa0/1

Router2(config-if)#no sh

Router2(config-if)#ip addr 12.12.12.2 255.255.255.0

Router2(config-if)#int fa0/0

Router2(config-if)#no sh

Router2(config-if)#ip addr 40.40.40.2 255.255.255.0

kemudian kofigurasi di router 3

Router3(config)#int fa0/0

Router3(config-if)#no sh

Router3(config-if)#ip addr 23.23.23.3 255.255.255.0

Router3(config-if)#int fa0/1

Router3(config-if)#no sh

Router3(config-if)#ip addr 40.40.40.3 255.255.255.0

kemudian konfigurasi routing protokol ospf,sekalian konfigurasi redistribute

Router1(config)#router ospf 10

Router1(config-router)#net 112.112.112.0 0.0.0.255 ar 0

Router1(config-router)#redistribute eigrp 10 subnets

Router1(config-router)#redistribute rip subnets

Router1(config-router)#ex

kemudian rip

Router1(config)#router rip

Router1(config-router)#v 2

Router1(config-router)#net 12.0.0.0

Router1(config-router)#redistribute ospf 10 metric 1

Router1(config-router)#redistribute eigrp 10 metric 1

Router1(config-router)#ex

lanjut ke eigrp

Router1(config)#router eigrp 10

Router1(config-router)#net 23.0.0.0

Router1(config-router)#redistribute rip metric 1 1 1 1 1

Router1(config-router)#redistribute ospf 10 metric 1 1 1 1 1

Router1(config-router)#ex

kemudian konfigurasi di router 2

Router2(config)#router rip

Router2(config-router)#v 2

Router2(config-router)#no net 12.12.12.0

Router2(config-router)#net 12.0.0.0

Router2(config-router)#net 40.0.0.0

Router2(config-router)#ex

kemudian konfigurasi di router 3

Router3(config)#router eigrp 10

Router3(config-router)#no net 23.23.23.0

Router3(config-router)#no net 40.40.40.0

Router3(config-router)#net 23.0.0.0

Router3(config-router)#net 40.0.0.0

kemudian konfigurasi hsrp di router 2 dan 3

Router2(config)#router rip

Router2(config-router)#passive-interface fa0/0

Router2(config-router)#ex

Router2(config)#int fa0/0

Router2(config-if)#standby 10 ip 40.40.40.1

Router2(config-if)#standby 10 preempt

Router2(config-if)#ex

kemudian konfigurasi di sw3

Router3(config)#router eigrp 10

Router3(config-router)#passive-interface fa0/1

Router3(config-router)#ex

Router3(config)#int fa0/1

Router3(config-if)#standby 10 ip 40.40.40.1

Router3(config-if)#standby 10 preempt

Router3(config-if)#ex

kemudian konfigurasi acces list di router 1

Router1(config)#access-list 10 deny 10.10.10.5

Router1(config)#ac

Router1(config)#access-list 10 p

Router1(config)#access-list 10 permit a

Router1(config)#access-list 10 permit any

Router1(config)#int fa1/1

Router1(config-if)#ip access-group 10 out

Router1(config-if)#ex

kemudian konfigurasi ACL

Router1(config)#access-list 100 deny tcp host 40.40.40.7 host 30.30.30.2 eq www

Router1(config)#access-list 100 permit ip any any

Router1(config)#int ra fa0/0-1

Router1(config-if-range)#ip access-group 100 in

Router1(config-if-range)#ex

kemudian ping dari ip 40.40.40.7 ke 30.30.30.2
